I just tried Camatron in New Jersey who had the correct number belt but the wrong tooth count. Thanks for looking for me. I am going to call Toledo now.

They only have one left in stock and the cost would be 50.00 or more before it got here. If the cut and splice doesn't work I will send the machine to the scrap yard or part it out. I really don't see any value in the parts. If the splice works I will send a photo if not I really thank all of you for advice and will forget the 153W101. I still would like to know why this machine was converted to a wheel foot in place of the walking foot. What was the wheel foot used for? What are the advantages or cons etc? Just curious.

I know t135 is best and that is what I have. I just meant I would like a machine that uses t207 and larger for holsters. It seems like that is going to be a pipe dream anyway. I think I can shorten the 41 tooth belt with enough strength to work. We will see.

I tried to order the proper belt from Universal Sewing and the belt had been discontinued by both suppliers. The only seller that has the belt is college sewing in the UK which is not a problem except the belt is cloth which cannot be a long lasting belt. I still have the new 41 tooth belt so the first thing I will do will shorten the new belt to 38 teeth. If that doesn't work I might try to order the cloth belt. Otherwise the 153W101 will just be a trot line weight. So I still need a machine to sew using at least 207 thread for holsters etc.

I ordered the belt from Universal Sewing Supply today. I had to call in the order since I could not get along with the online order site. It should be here in a week or two. I also should have time to work over the bushing behind the hand wheel to male it easier to install and remove. I think it should be a tight push fit and not a hammer fit. It is so tight I have almost destroyed it after two removals. If the weather permits I should have a chance to do the outside cleaning and remove some light surface rust.

Thank you Eric! I will order one after the first of the month. I need to polish the shaft bushing first for I have almost to destroy it to get it out. It is a press fit where a push fit would be fine. I did look at universal sewing supply but somehow failed to see it. I appreciate your time for helping me with my belt problem. I will be glad to get it running so I can see if I like the roller foot. Tony

TinkerTailor I have a couple of old lathes (a 12inch and a 6 inch Atlas) I have had for many years. I got them when I was gainfully employed and had some expendable cash. They have been very helpful over the years. I hope you find one for yourself.

The only number for a 38tooth belt is for the 153W100 which is 235003 and the only belt with 38 teeth is a fabric belt from England. The England company indicates the belt is for a 47W which some parts manuals say a 47W uses a crank shaft /rod assy. I know the belt on my 152W101was a neoprene belt and not fabric so I know they were made. I just don't know where. Thank you very much for looking.

That would be a fantastic help! Thank You

I have checked their stock and I didn't find one. I knew they made some flat belts but I didn't know they made timing belts. I had them make a belt for my tool post grinder! If I don't find a stock one I will check them.

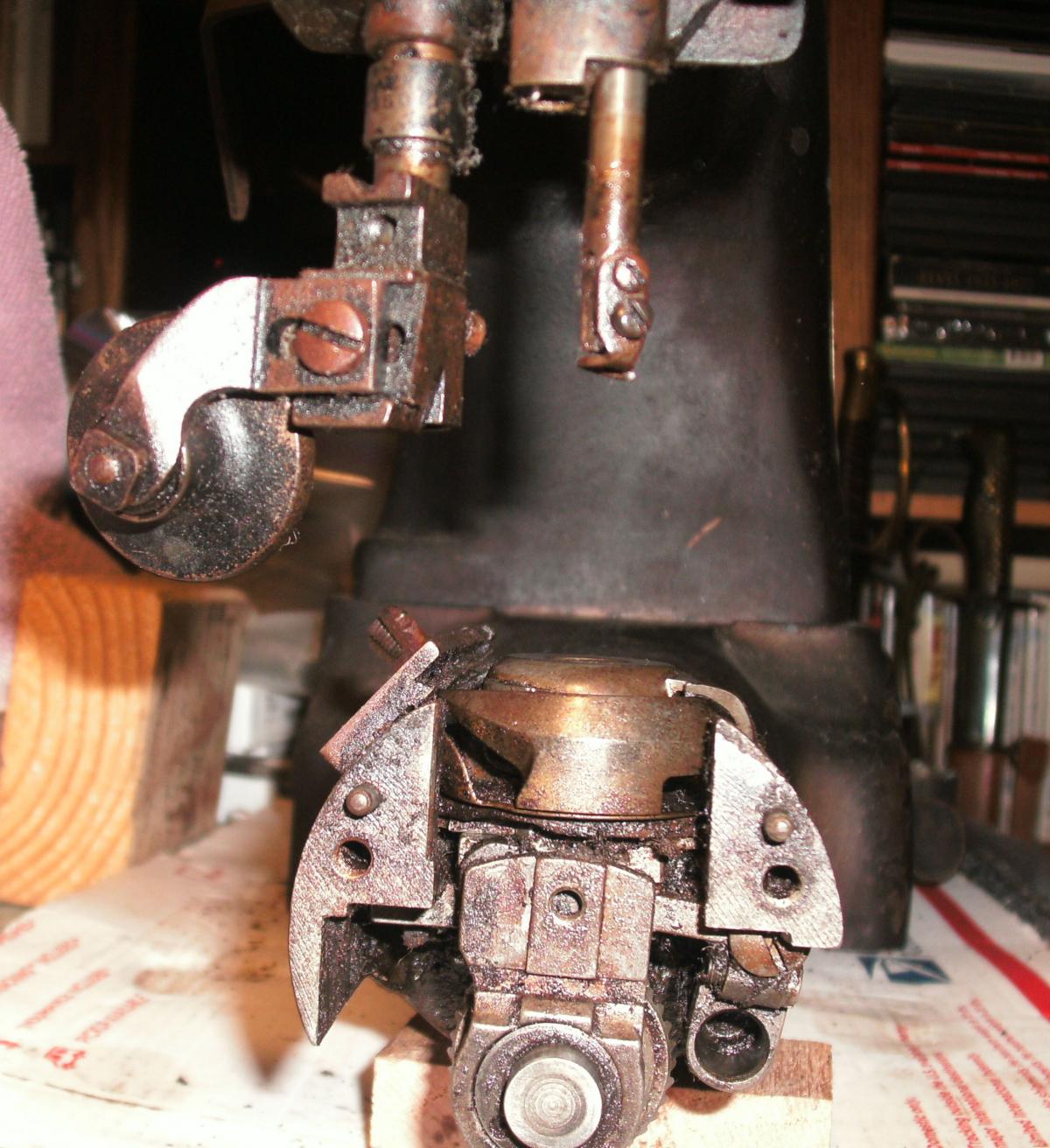

I have confirmed that I need a 38 tooth belt for my 153W101. I have looked for a while and I can find no source for a 38 tooth neoprene belt. They seem to be as scarce as hens teeth! If anyone might know of a source please let me know. I also have a wheel foot on it and was considering trying to go back to the walking foot system (only needs a few parts since it has been before) but I have been told the wheel foot is very good for knife sheaves and small holsters. I also may to find a parts machine to change the sprockets for the 224195 belt. If I live long enough, I will get this machine running!!!!!

I think if I can just find the belt the rest will be hard cleaning and my memory on how to reassemble it. Thank You for your advice.

OK, I finaly got my brain on straight!

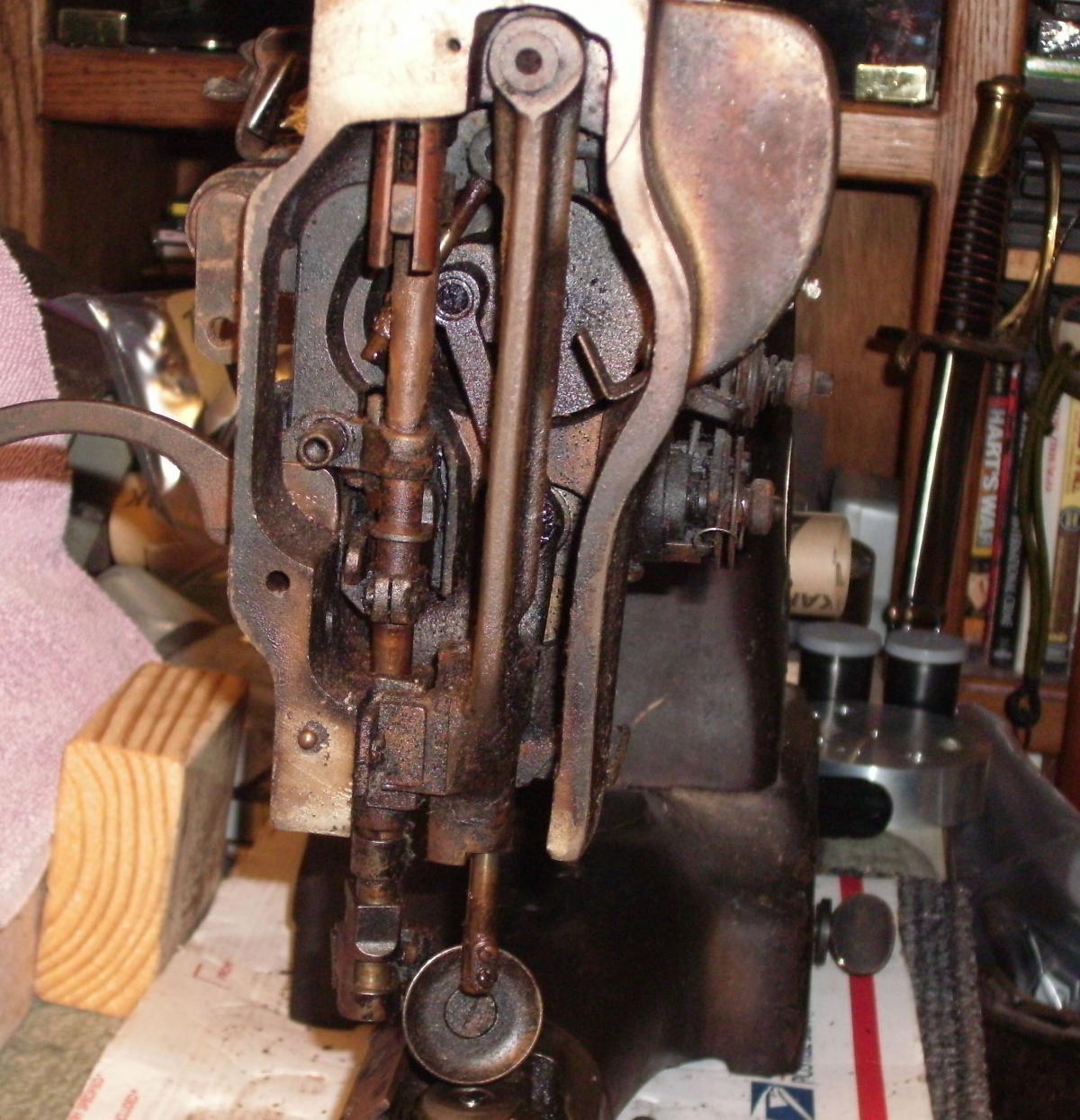

The machine is dirty with a little surface rust. I have oiled and cleaned most bearing surfaces. I have a small problem with the bobbin holder but I am cleaning that area now and will see if I need parts. The reason I am fooling with this machine is that it was not hurt so much in the fire as the water to put it out. I have been working on this machine since I think I can Use it and I can't afford a better machine for my purposes. Now hand sewing is the best I can do and I have arthuritis in both hands and think I need a machine. Hang me but I have also thought about the Chinese shoe repair machine on the market now.

I will try to send photos if I can figure out how! My brain is not as efficient as it once was!
