Needle was a 135 x 16 tri x 20 with T90 thread. I went through t he machine and checked the timing and pressor feet tensions. Made a few adjustments and it seems to be working okay now. It does seem to have a slight angle toward the end of the cylinder as mentioned and I was using an edge guide. I have a comprehensive maintenance video of my 206RB-5 that goes through every timing and adjustment. It’s is awesome and I’ve needed it twice now in about 7-8 years of working. is there or does anybody have a link to a tuning and maintenance video of a cowboy cb-341? this is the video(s) I’m referring to with my consew 206. It’s incredible. https://youtu.be/y4ACNMX65zE?si=H4kH0VbSNbj8hhbl

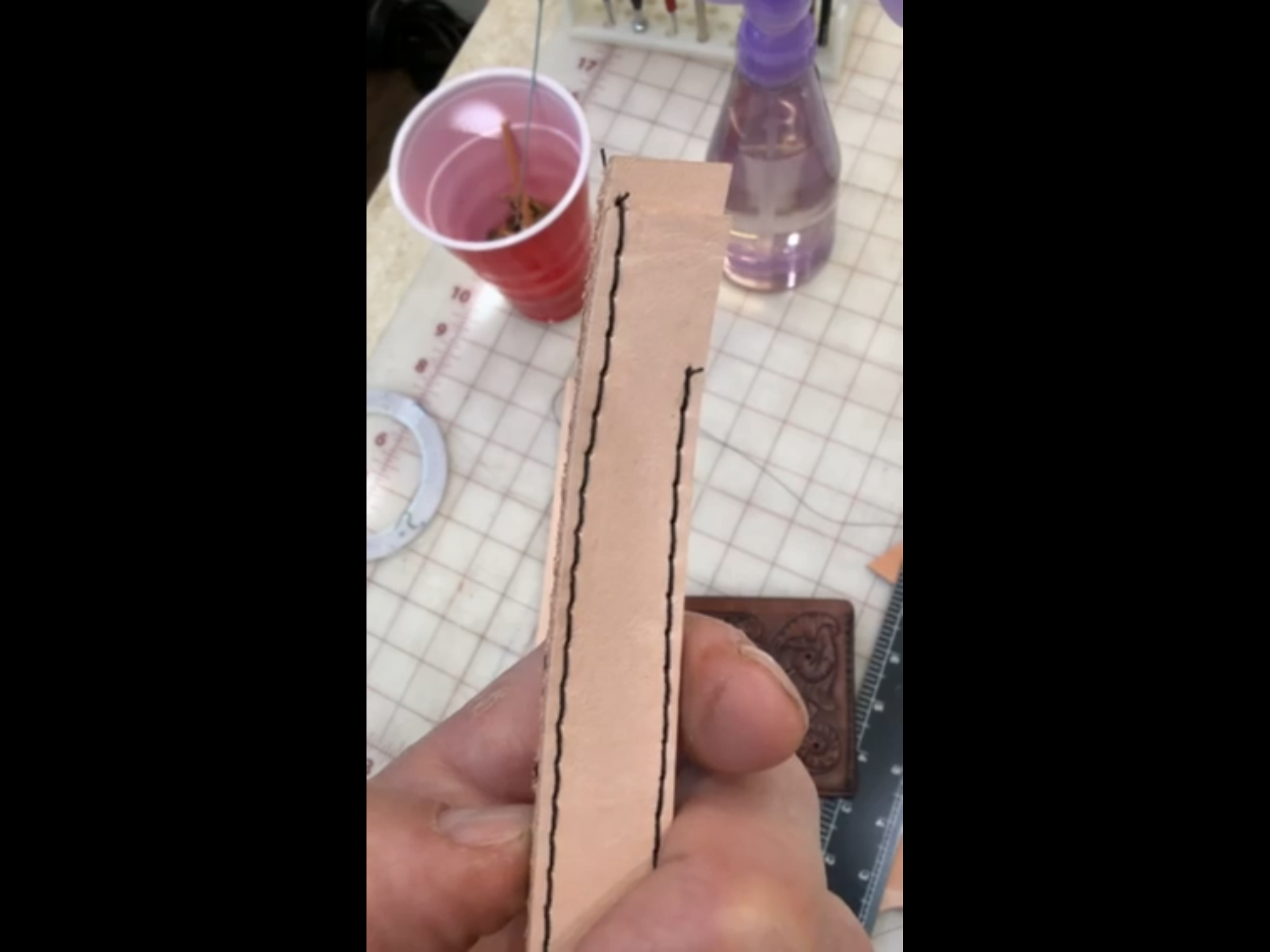

I can’t figure out why I’m having problems with this new machine. Any time I try to sew near the edge of leather, I either bend a needle or the bottom of it looks awful. It wanders badly and just doesn’t like it. In a lot of cases, it will bend the needle. Even being a new needle. Yet, if I move the leather to about 1/2 in towards the throat, it works fine. So, is it the pressor foot? Or what’s going on? I have a consew 206 that I’ve been using when it’s near the edge but I’ve purchased this machine to take care of my leather work.

Sorry Sold.

USed very little no shipping with extra needles and thread. Works perfect. my business is now all upholstery work with fabric. Pickup in Vacaville California Specifications Model: CB3500 Arm Length: 9" Arm Diameter: 3 9/16" Maximum Foot Lift: 1 1/16" Max Sewn Thickness: 7/8" Needle: 7x3 or 794: #19-#27 Thread Sizes: #69 - #415 Bobbins: 7/8" x 1" large capacity Max Speed: 800 rpm Max Stitch Length: 3 per inch Reverses into same holes Adjustable speed, high torque servo motor Ball bearing 3:1 speed reducer Height adjustable stand on casters Long neck, hi-intensity flex lamp
