Drawing a square with a compass/dividers & Rule.

You will need:

Compass/dividers, rule & a pencil.

Steps:

1. Draw 2 parallel lines the height of your square apart (for this I did 100mm approx 4")

2. Decide on a start point. (Point A) Pic1

3. Set compass to approx 25mm/1" and mark both sides of point A. These will become point B & C. Pic2

4. Open the compass approx 125mm/5". From point B & C mark an arch high above point A. They should cross over, this is now point D. Pic3/4.

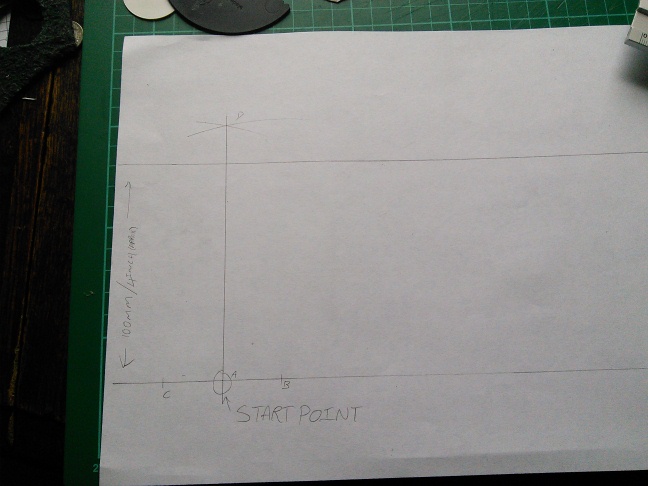

5. Draw a line through point D & A. You should now have a 90degree line. Pic5

6. Repeat steps 2-5 for the final side of the square or simply use the rule & measure across.

This great for template making when you don't have a set square. You can use Pythagoras to make sure the line is 90degrees.

Edited April 1, 2014 by northmount
Corrected item 1

[Redochre]

Thank you for posting this Kevin. Hopefully someone will find it useful.

[Tree Reaper]

You're welcome Andy, you did a good job explaining the process.
