MikeG

Update: removing the roll pin allowed for adjustment of the stitch length forward and backward and the machine now reverses into the same holes, just as in UWE's video! SUCCESS!

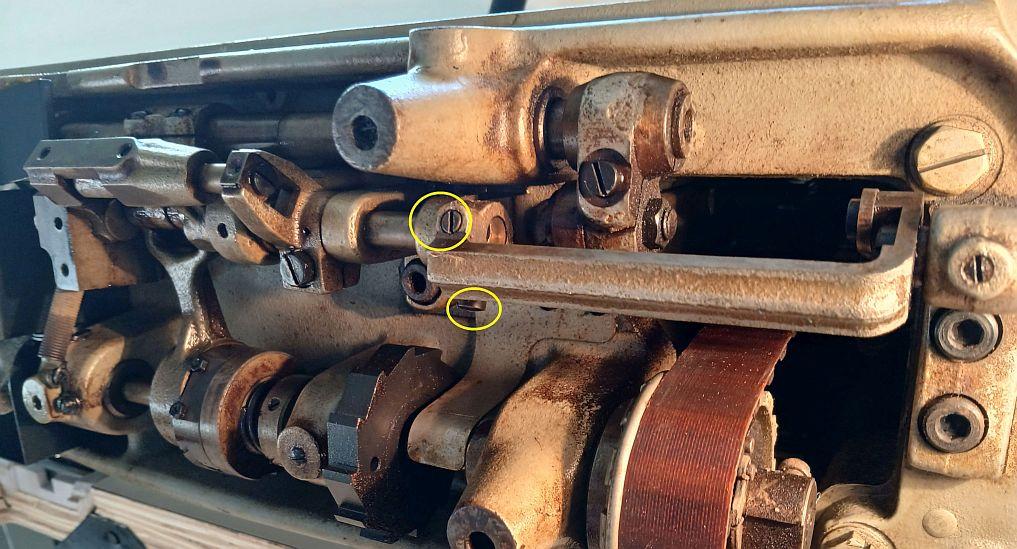

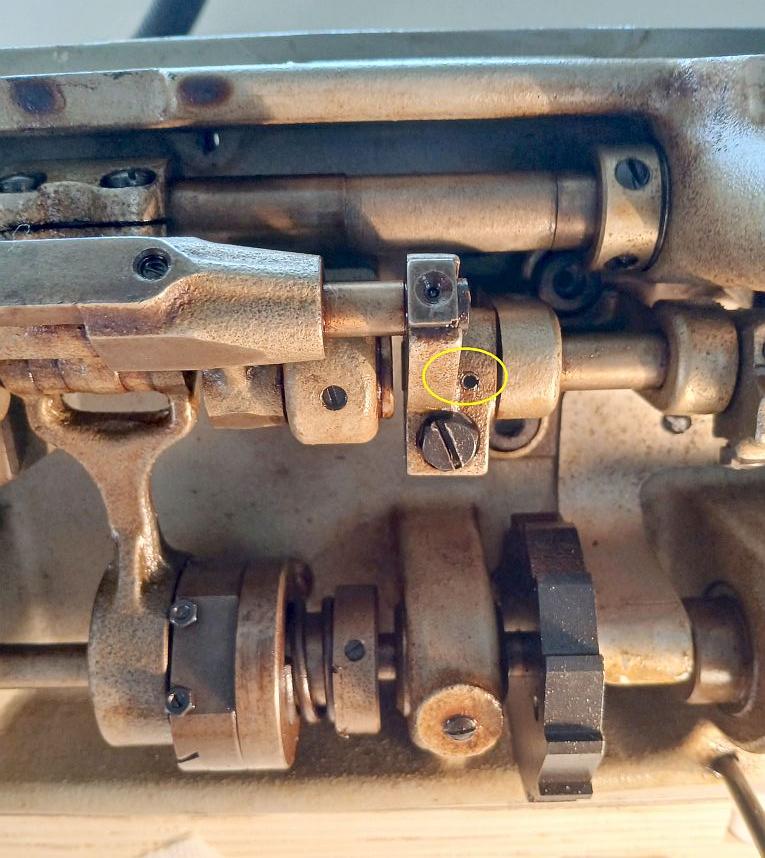

I have the exact same issue with my vintage Juki LU-563. The stitch block cannot be moved because there is a roll pin adjacent to the adjusting screw. Moving to the right, I thought I could make the adjustment using the two screws marked in yellow, but no joy. I believe the only way to adjust this machine is to remove and discard the roll pin. At the present time, I have about 7 stitches/inch forward and about 4 per inch in reverse, so it definitely needs to be corrected. Hoping UWE can weigh in on this. Pic showing roll pin: Pic of Reverse bar screws: EDIT: My theory is Juki set the forward stitch length at the factory and locked it with the roll pin, with the intent of setting the reverse stitch to match using the limiters. UWE removed the stitch limit on the reverse and then adjusted the bar to get equal length stitches, with the result being a longer stitch length than came from the factory.

Awesome info, thanks all! I have ordered zipper feet to play with. I had figured leaving excess for the foot to walk on and trimming later would be the way to go -- thank you for confirming that. Again, thanks to all - what an awesome site for REAL information from folks that have experience from doing. Cheers to all and hope you all have a great Thanksgiving!

CDK - Thank you for the picture. It helps to know what I am looking for. I found this on ebay - not quite as narrow as yours, but it looks like it could be ground down a little if needed.

Thanks, Wiz! I have a Juki LU-563 I am just getting set up. I did purchase a Consew servo from Toledo -- I will contact them about feet for my application. No sir, I didn't update the picture. I really didn't know how to explain wanting to sew right up next to a vertical "wall" when making molded cases. To date it has always been hand stitching. I know manufacturers like leatherman must machine sew their cases, so I figured I would ask here. The answer seems to be a narrow or inline (or both ) foot setup will be the ticket.

Thanks for the responses. I have not had any experience with the different feet, so I appreciate these recommendations.

Thank you - I will look for piping feet

Is there a way to machine sew molded cases like shown in the image? I have seen some recent discussions on special feet. I am guessing that with the proper foot I could sew close to the raised portion of the case, perhaps leaving more leather for the foot to walk on and then trimming after sewing. Any hints on how to do this and/or any special feet needed would be greatly appreciated!

It cleaned up very well and runs smoothly. After a thorough clean, I blew air in it to dry it out and was rewarded with what looked like a full bag of sunflower seed hulls. Guess somebody was living inside it! I'm very happy with how it is turning out. Thanks all for the encouragement.

Thank you all for the input - that is wonderful news! Yes, I have the table, but it needs a thorough descaling, paint, and a new top. Bob, I will be ordering a Consew servo motor soon.

Got a great deal on a Juki LU-563. Essentially a one-owner machine that has spent the last 10-15 years in storage. It is tight and free, but it will obviously need to be oiled and checked out before being put into use. Most of the discussions on this forum seem to deal with damaged or broken machines. This one appears to be in remarkably good condition. My question is: Does the machine need to be completely disassembled? I have not yet found a service manual, and I'm hoping not to have to take it apart using a parts diagram. Thanks in advance for thoughts on how to proceed.

Thanks, Jay. Beast pretty much sums it up. You have to be doing a lot of pretty heavy work to need one of these. It's a great conversation starter, though :-)

Seems like that's what everyone is interested in.

Sorry I missed that. This thing is HEAVY. it will have to be picked up. Halfway between Nashville and Chattanooga

A niche machine for sure. I have owned it many years, but it has received very little use. It is upgraded with the hand wheel, roller guide and extra bobbins, needles, feet, accessories. It came with a clutch motor and speed reducer - I have installed a servo motor, but the clutch motor goes with it. I also have the original manuals and documentation for it. It is located in middle Tennessee. I am aging out of the leather business and it needs to go before I do. It was a very expensive ($3,500) machine before adding the motor, table, etc. - I will consider reasonable offers in the $2K range. I also have many, many craftool stamps, Leatherworker magazines, and miscellaneous items up for discussion as a package deal. I will not sell the tools prior to selling the stitcher. This is an overview of the machine. Note this video is for the Classic. Mine is a No. 9, which is the predecessor. Still a fine machine
