Help with machine setup/use

[ZARDOZ the GREAT]

HOW-DEE!

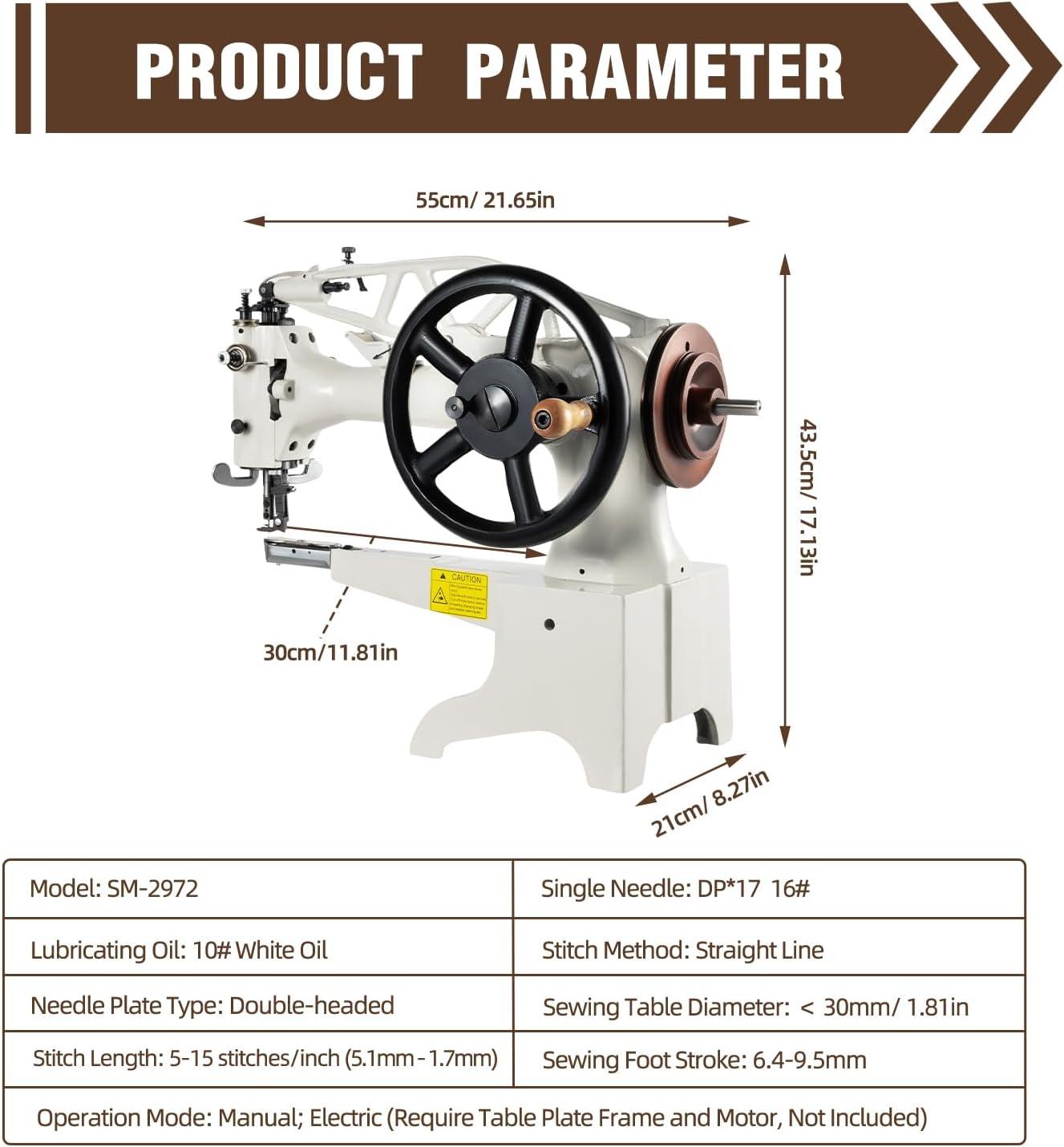

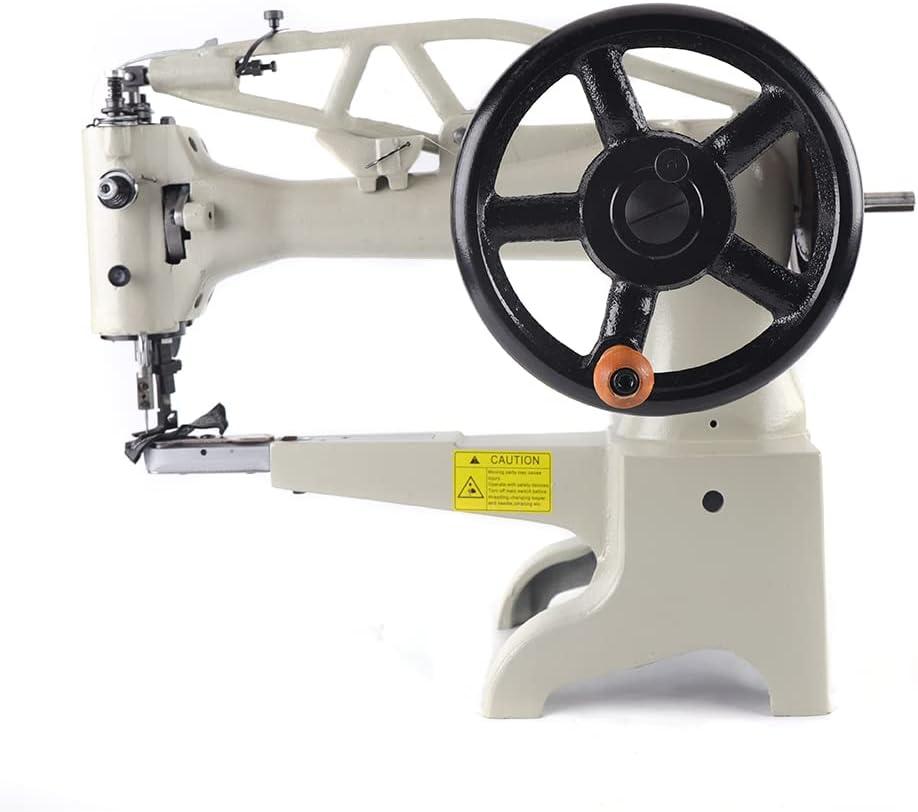

Does anyone have instructions/input on how to thread and use this machine?

It's a copy of an original one I think.

Has the hand crank but I also have the electric motor kit.

I want to learn how to set it up and use it, but can't find instructions.



Thank you!

[kgg]

  On 4/17/2025 at 8:23 PM, ZARDOZ the GREAT said:

I want to learn how to set it up and use it, but can't find instructions.

Expand

Download the Singer 29k-72 manual. Here is a pdf version:



kgg

Singer 29K71, 72, 73-1.pdfFetching info...

[ZARDOZ the GREAT]

  On 4/17/2025 at 8:37 PM, kgg said:

Download the Singer 29k-72 manual. Here is a pdf version:



kgg

Singer 29K71, 72, 73-1.pdf 16.09 MB · 0 downloads

Expand

Oh wow!

Thank you!

So it's a copy of that Singer.

Thanks!

Edited April 17 by ZARDOZ the GREAT

[kgg]

  On 4/17/2025 at 9:02 PM, ZARDOZ the GREAT said:

So it's a copy of that Singer.

Expand

How good a copy, clone or whatever you want to call them depends on the quality of the casing and internal parts.

kgg

[ZARDOZ the GREAT]

  On 4/18/2025 at 12:12 AM, kgg said:

How good a copy, clone or whatever you want to call them depends on the quality of the casing and internal parts.

kgg

Expand

I also read saying it is a copy oif a "Consew".

[ZARDOZ the GREAT]

I can't find the wire used for running the thread down to the needle, or the bobbin holder to refill the bobbin.

I also am trying to figure out what thread the bottom holes have to attach to a table, but I figure that may be trial and error.

Any suggestions on alternatives/hacks?

[kgg]

  On 4/18/2025 at 7:28 PM, ZARDOZ the GREAT said:

I also read saying it is a copy oif a "Consew".

Expand

The Consew is just another clone variation of the Singer.



  On 4/18/2025 at 7:30 PM, ZARDOZ the GREAT said:

I can't find the wire used for running the thread down to the needle

Expand

Some of the clones use a small needle like thing that you tie the thread to and drop it down the threading hole.



  On 4/18/2025 at 7:30 PM, ZARDOZ the GREAT said:

I also am trying to figure out what thread the bottom holes have to attach to a table, but I figure that may be trial and error.

Expand

If they copied the thread from the Singer, Singer had their own thread pitch and finding them is going to be difficult / impossible. So you can either re-drill / re-tap the holes or use a smaller bolt that will fit through the hole.

kgg

[Constabulary]

Threading wire:

https://www.ebay.de/itm/162385533414

Screws could be metric too - you never know. I´d re-tap a new and more common thread.

Edited April 19 by Constabulary

[ZARDOZ the GREAT]

Thank you everyone.

I will try and figure it out.

I got some of those thin green wires used for floral crap and will see if that will work.
I have some spare bobbins and that threader wire in storage somewhere, so maybe it will pop up next time I go.
