Workaround for using cross-wound thread cones on Singer 45K or 29K patchers and other machines with plain thread pin

[Constabulary]

I ordered one of these just out of curiosity.

https://de.aliexpress.com/item/1005007232336060.html

Price today is 1.49€ and free shipping on orders above 10€. Not sure what price you see on the other side of the pond.

They work for cross-wound cones with a 3" / 7.5cm base. Smaller and larger thread cones do not work with this thingy (well, depends on the core diameter which on my cone is approx 1")

Could be a workaround and prevents "heavy weight" x-wound thread spools from spinning on the thread pin. That sometimes can cause tension problem.

Design could be a little better, IMO it could use a set screw to secure this thingy on the thread pin and the tube should the 3/4" or so longer so it would thick out of the hole on the top of the thread spool but anyway - it works as is but needed a little bending here and there.

Not that everybody needs one (there are other "options" too) but its a fairly cheap workaround and could be an improvement.

Just wanted to share this. 😉

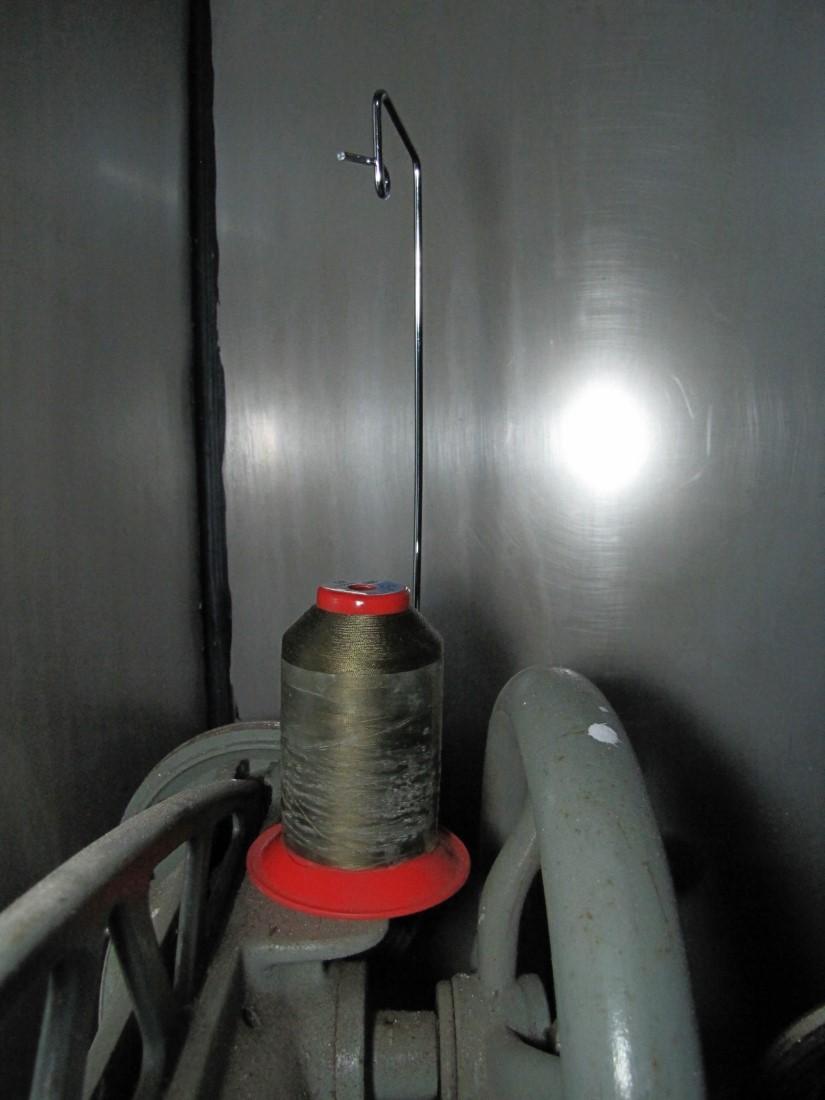

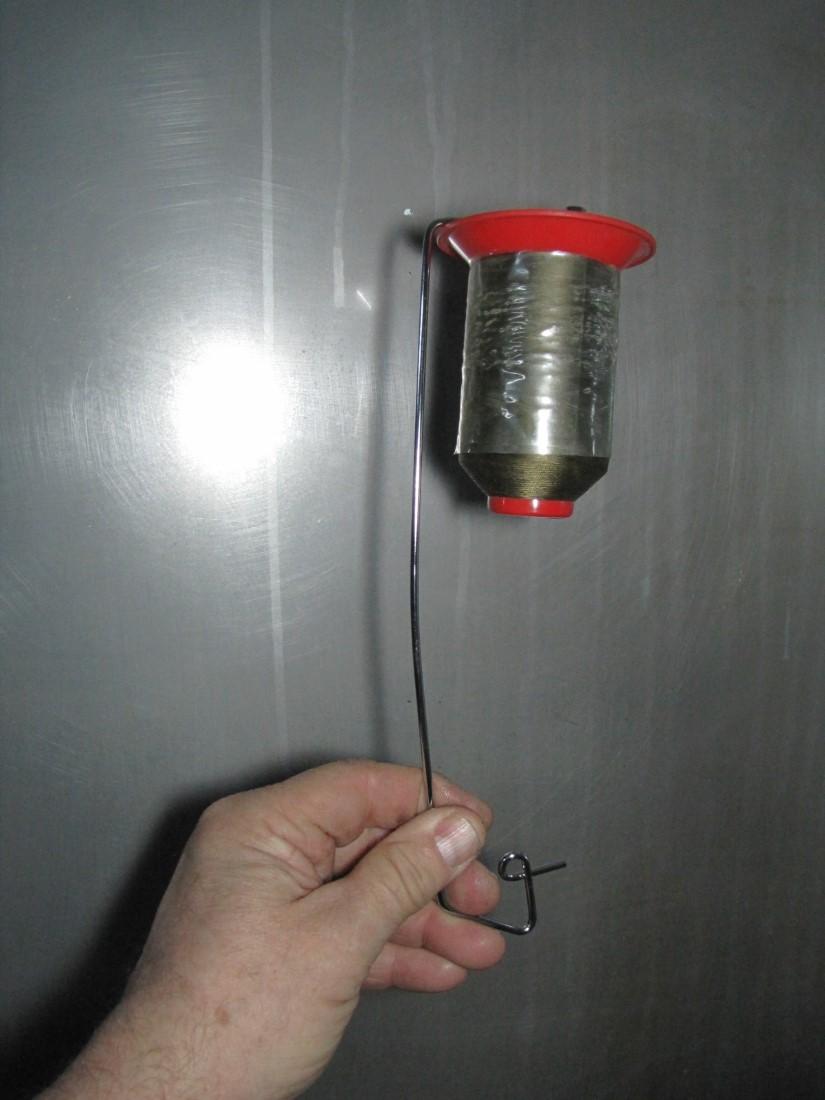

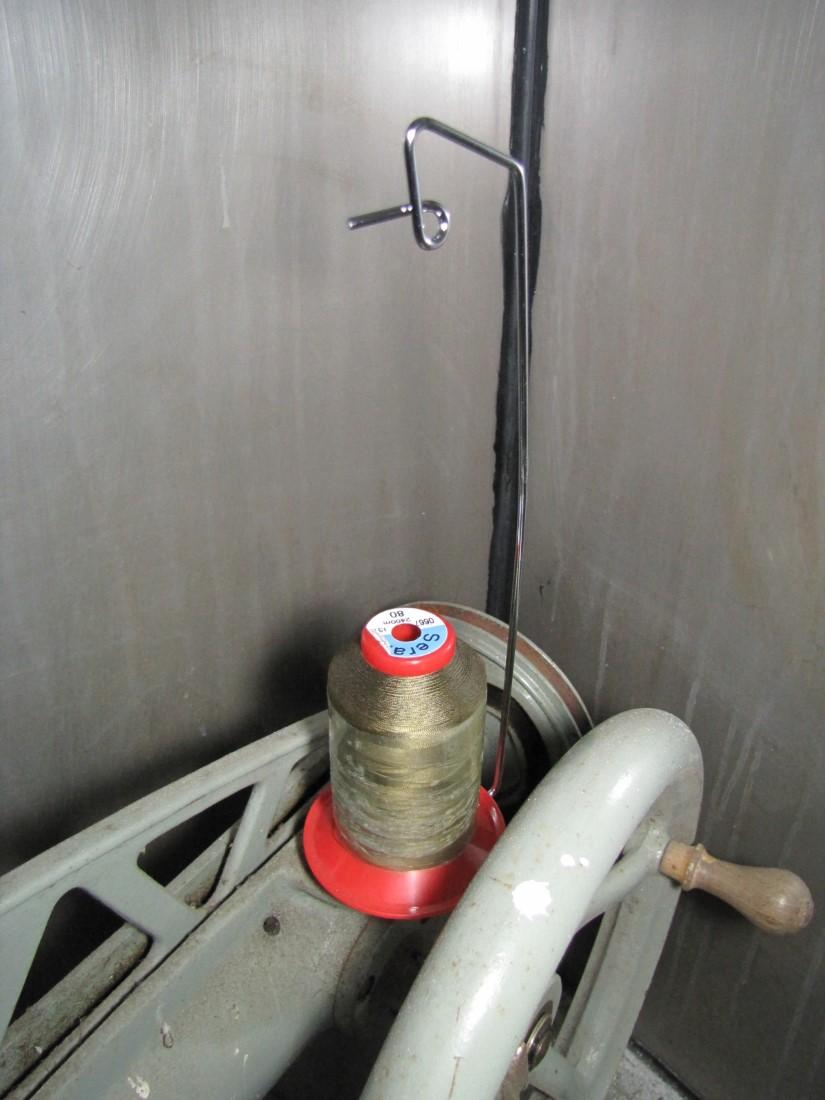

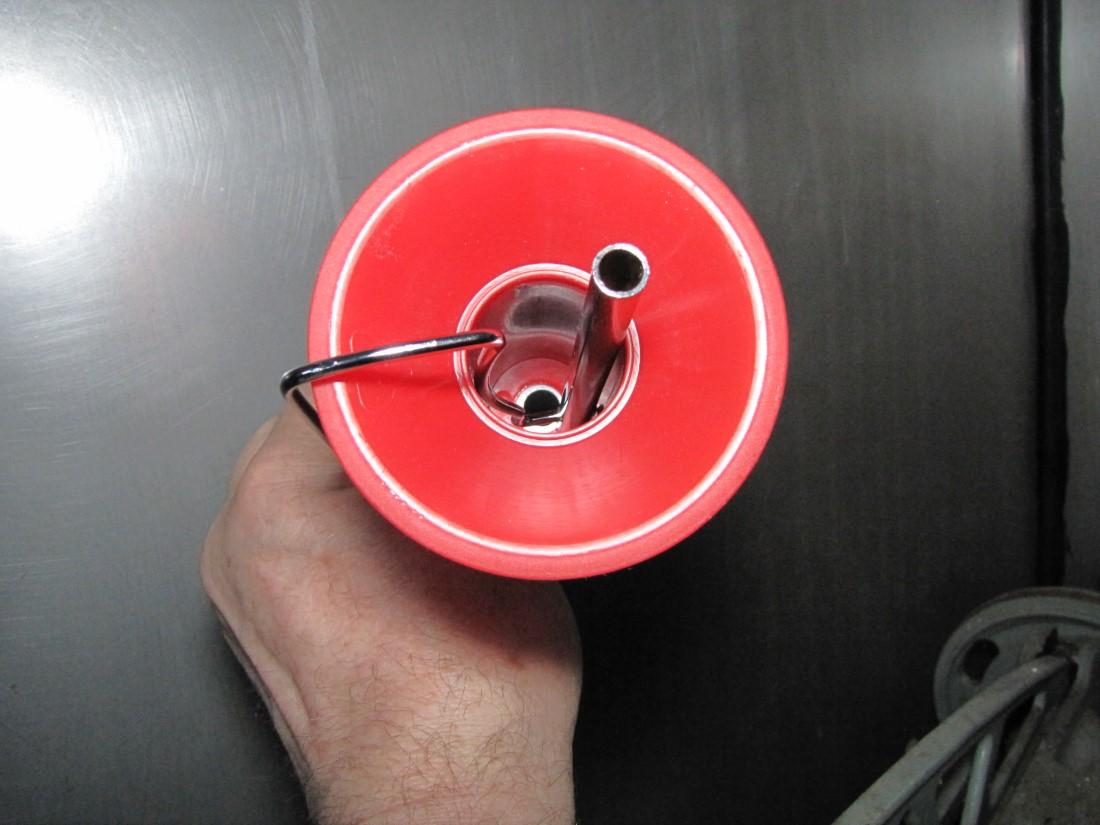

Some quick pictures:

Edited 1 hour ago by Constabulary

[AlZilla]

This exact thing has been on my mind for my multitude of vintage machines. The link redirects me to the US site, where they're 99 cents today. I'll be ordering several.

Thanks, this is a great find.
