Contributing Member SooperJake Posted August 27, 2012 Contributing Member Report Posted August 27, 2012 Is there a class somewhere for learning how to use an industrial sewing machine (441 clone)? Jake Quote Once you know what the magician know.... it isn't magic anymore.
Contributing Member TwinOaks Posted August 27, 2012 Contributing Member Report Posted August 27, 2012 I don't know of a specific class for it, but there's lots of advice here about it. One of the best I've heard is to start with some cardboard scraps and sew with needle only - no thread. That will get you used to the timing of turning between stitches. After that, well...you have a box of scraps don't you? Quote Mike DeLoach Esse Quam Videri (Be rather than Seem) "Don't learn the tricks of the trade.....Learn the trade." "Teach what you know......Learn what you don't." LEATHER ARTISAN'S DIGITAL GUILD on Facebook.
Contributing Member SooperJake Posted August 28, 2012 Author Contributing Member Report Posted August 28, 2012 Oh yes..I've got the making of scraps down pat Jake Quote Once you know what the magician know.... it isn't magic anymore.
Tree Reaper Posted August 28, 2012 Report Posted August 28, 2012 Just get on it. I made cases for a few of my tools to get familiar with it. You'll make mistakes and learn from them, I still do. To lock the stitch I start about four stitches down and reverse to the edge then switch to the forward stage and stitch over the first four then keep going. That's it, class dismissed. Kevin Quote
Techsew Ron Posted August 28, 2012 Report Posted August 28, 2012 We realize a lot of our customers are beginners so we provide instructional videos, user manuals, and lots of general pointers and advice. Your dealer should be able to help you get going. If you've never even used a sewing machine before you should watch as many videos as you can on learning how to sew with a simple home sewing machine, just to pick up the basics. Lots of what you see on a home sewing machine will translate to an industrial machine. Then, continue onto learning what you can about industrial machines and specifically your machine if possible. Just go on youtube and you'll find tons of helpful videos. Besides this, practice practice practice. Enjoy yourself! Ron Quote Techsew Industrial Sewing Machines Call toll-free: 866-415-8223 Visit www.techsew.com
Moderator Wizcrafts Posted August 28, 2012 Moderator Report Posted August 28, 2012 (edited) Wiz's 441 tips Always hold back the top and bottom threads, equally taut, for the first couple of stitches. This prevents thread from jamming in the shuttle, or under the leather. There is a presser foot pressure spring in the head, with a threaded adjuster on top of the head. If the leather lifts as the needle lifts, apply more spring pressure to keep the leather from lifting. This condition causes skipped stitches. Learn how to control the motor speed with your preferred foot. You can reduce the top speed of the motor by applying certain up/down button sequences. You should have received a pamphlet explaining this. If the machine shipped with #277 thread, learn to sew with that thread, using a #25 leather point needle. This thread is really too large for thin leather, like 8 ounces, but it is okay to learn on. Start with some strips and add layers every few inches. This will teach you how the feet walk over new layers and back down. It also shows you how the stitch length diminishes as you increase the thickness being sewn. The top thread tension is always tighter than the bobbin tension. Play with the top tension disk spring setting to see how changes impact the position of the knots. The bobbin case has a tension spring adjuster also, but, it is normally locked in place with a tiny set screw. Find and loosen that set screw a bit, then change the tension of the bobbin thread and see how this changes the position of knots and ease of feeding the material. A tight bobbin makes it harder to advance the leather. Loosen it too much and the knots will rise to the top, instead of inside the layers. The pedestal table height can be raised or lowered by loosening two heavy bolts in the slots of the column. If the starting height isn't where you like it, get someone to help you to lift the head off the table, then raise or lower it to a better height and lock it in. The belts need to be pretty tight if you intend to sew thick or dense leather. The first adjustment is on the motor itself, via two 15 mm nuts, above and below a movable arm on the front of the motor. This should be okay from the factory, but could change with use. Learn the affect that loosening and tightening the motor adjuster has on the operation of the machine. Ditto for the speed reducer, which is adjusted up and down by a single large bolt in a slot in the column it rides in. I usually leave the overall belt tension just a tad backed off, then spray the belts with belt no-slip out of a can from an auto parts store. This allows me to handwheel critical stitches and takes the load off all of the bearings in that part of the drive chain. The motor and speed reducer mounts are also movable laterally. Sometimes they are not mounted dead center of the pulleys and this causes unnecessary vibration from the belts moving sideways. Find and test the lateral adjustment of your motor and speed reducer, in relation to the motor pulley, speed pulleys and machine hand wheel pulley. BTW: The flywheel pulley faces out to the right, not toward the machine. It can be repositioned sideways on its shaft by loosening two bolts. It should line up with the small pulley on the speed reducer. If aligning these two causes the motor pulley to go out of alignment, move the motor by loosening three nuts on the bottom of the carriage bolts going through the table top and motor mounts. You may need to clamp the tops of the bolts with a vise grip to loosen and tighten the nuts for the motor. The machine arrived threaded. Memorize how it was threaded. Make sure that the top thread does not twist over itself and cause knots or binds on any posts or thread guides. Sudden knots on top of the leather are usually caused by top thread wrapping around something it should pass through, not wrap around. I hope these tips help you get started. Edited August 28, 2012 by Wizcrafts Quote Posted IMHO, by Wiz My current crop of sewing machines: Cowboy CB4500, Singer 107w3, Singer 139w109, Singer 168G101, Singer 29k71, Singer 31-15, Singer 111w103, Singer 211G156, Adler 30-7 on power stand, Techsew 2700, Fortuna power skiver and a Pfaff 4 thread 2 needle serger.
Tree Reaper Posted August 28, 2012 Report Posted August 28, 2012 That's fantastic Wiz, another wealth of information for the vault. Thanks for all your help. Kevin Quote
Contributing Member SooperJake Posted August 28, 2012 Author Contributing Member Report Posted August 28, 2012 Thanks, Folks. Wiz, Thanks. I've printed off your tips to post on the wall behind my machine! Jake Quote Once you know what the magician know.... it isn't magic anymore.
Techsew Ron Posted August 28, 2012 Report Posted August 28, 2012 Wiz's 441 tips Always hold back the top and bottom threads, equally taut, for the first couple of stitches. This prevents thread from jamming in the shuttle, or under the leather. There is a presser foot pressure spring in the head, with a threaded adjuster on top of the head. If the leather lifts as the needle lifts, apply more spring pressure to keep the leather from lifting. This condition causes skipped stitches. Learn how to control the motor speed with your preferred foot. You can reduce the top speed of the motor by applying certain up/down button sequences. You should have received a pamphlet explaining this. If the machine shipped with #277 thread, learn to sew with that thread, using a #25 leather point needle. This thread is really too large for thin leather, like 8 ounces, but it is okay to learn on. Start with some strips and add layers every few inches. This will teach you how the feet walk over new layers and back down. It also shows you how the stitch length diminishes as you increase the thickness being sewn. The top thread tension is always tighter than the bobbin tension. Play with the top tension disk spring setting to see how changes impact the position of the knots. The bobbin case has a tension spring adjuster also, but, it is normally locked in place with a tiny set screw. Find and loosen that set screw a bit, then change the tension of the bobbin thread and see how this changes the position of knots and ease of feeding the material. A tight bobbin makes it harder to advance the leather. Loosen it too much and the knots will rise to the top, instead of inside the layers. The pedestal table height can be raised or lowered by loosening two heavy bolts in the slots of the column. If the starting height isn't where you like it, get someone to help you to lift the head off the table, then raise or lower it to a better height and lock it in. The belts need to be pretty tight if you intend to sew thick or dense leather. The first adjustment is on the motor itself, via two 15 mm nuts, above and below a movable arm on the front of the motor. This should be okay from the factory, but could change with use. Learn the affect that loosening and tightening the motor adjuster has on the operation of the machine. Ditto for the speed reducer, which is adjusted up and down by a single large bolt in a slot in the column it rides in. I usually leave the overall belt tension just a tad backed off, then spray the belts with belt no-slip out of a can from an auto parts store. This allows me to handwheel critical stitches and takes the load off all of the bearings in that part of the drive chain. The motor and speed reducer mounts are also movable laterally. Sometimes they are not mounted dead center of the pulleys and this causes unnecessary vibration from the belts moving sideways. Find and test the lateral adjustment of your motor and speed reducer, in relation to the motor pulley, speed pulleys and machine hand wheel pulley. BTW: The flywheel pulley faces out to the right, not toward the machine. It can be repositioned sideways on its shaft by loosening two bolts. It should line up with the small pulley on the speed reducer. If aligning these two causes the motor pulley to go out of alignment, move the motor by loosening three nuts on the bottom of the carriage bolts going through the table top and motor mounts. You may need to clamp the tops of the bolts with a vise grip to loosen and tighten the nuts for the motor. The machine arrived threaded. Memorize how it was threaded. Make sure that the top thread does not twist over itself and cause knots or binds on any posts or thread guides. Sudden knots on top of the leather are usually caused by top thread wrapping around something it should pass through, not wrap around. I hope these tips help you get started. Great tips ! Ron Quote Techsew Industrial Sewing Machines Call toll-free: 866-415-8223 Visit www.techsew.com

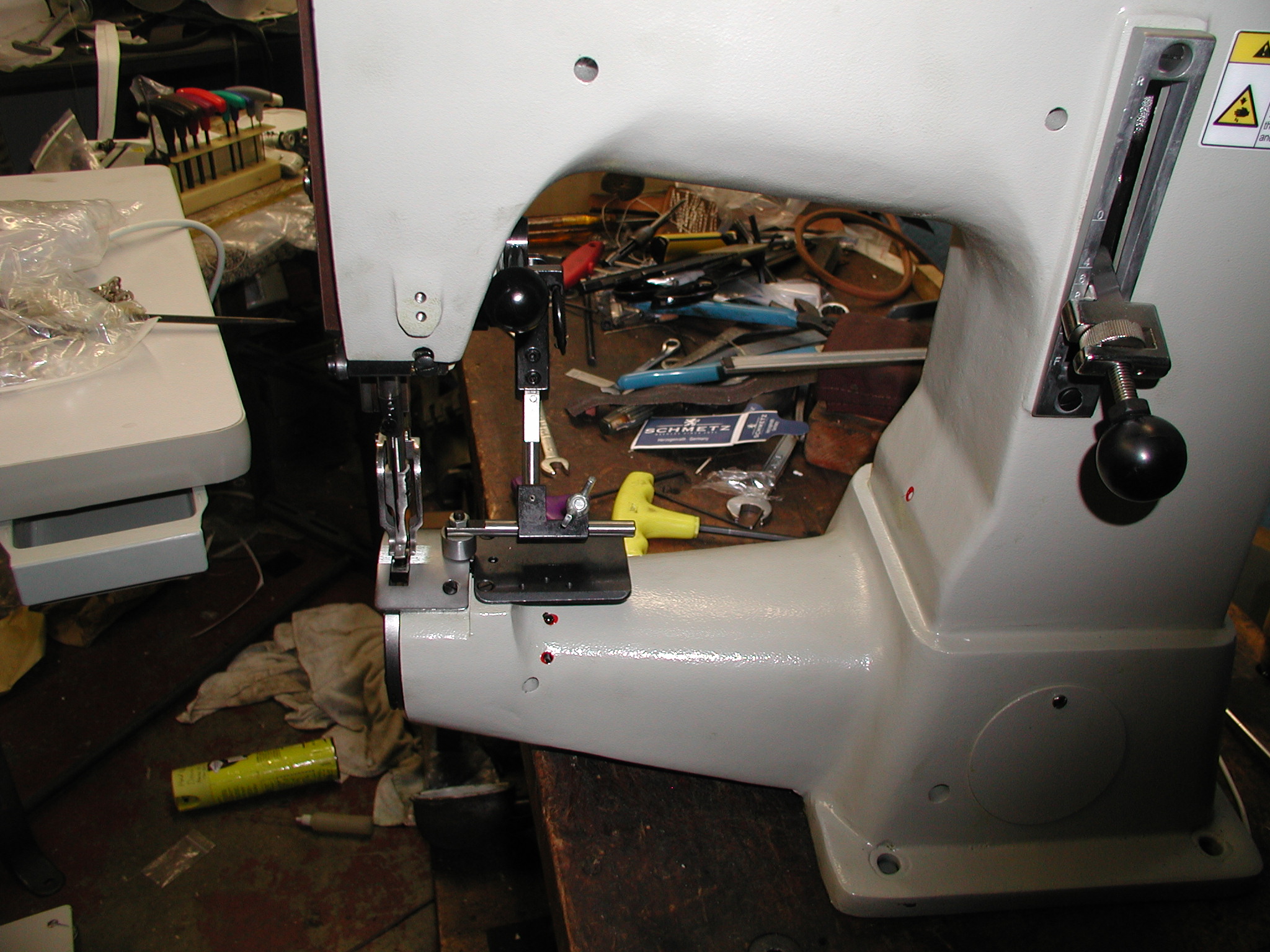

Contributing Member SooperJake Posted August 28, 2012 Author Contributing Member Report Posted August 28, 2012 (edited) I could use pictures of the drop down belt guide installed. Preferably one in the 'up" position, and one in the "down" position. CB4500 Thanks, Jake Edited August 28, 2012 by SooperJake Quote Once you know what the magician know.... it isn't magic anymore.
