Cb4500 Help

[Tree Reaper]

The 4500 doesn't come with illustrated parts or assembly instructions and I have a few pieces that I'm not sure what they are or where they belong.

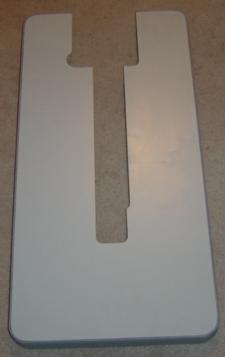

There is what I think is an optional table but I don't know where it goes or what it's for.

Next is a box with what looks like a thread guide.

I figured out where the casters go on my own.

Thanks.

Kevin.

Edited February 1, 2012 by Tree Reaper

[KAYAK45]

Ha ha ha Jjum! I had the same problem when I got my CB 4500!

Lots of parts! HAHAHAHUM

Just call Bob or Ryan HAHAHHUM!

They will sort them out for you!

Parts are good!

Kevin Good laugh!

[dirtclod]

The top one is a table of sorts. It sides on your arm. I'm not sure how fastens. The second one is a wax pot it fits on the top of machine in front of the top thread guide. You should see a couple of bolt holes. You put thread lube in it and run your sewing thread through it.

[KAYAK45]

OK...... so I cannot stop laughing! You got the idea that the castors go on the down side. Good work.

Next, Look at the pictures!

Your table does not need to be put on. Actually I took mine off and it works better.

IF you decide to raise your table, shut of the power! Ask me why?

Needles are stronger than fingernails.

Next, be sure to follow instructions for threading. Once through the silver thing, One and a half around and back through the silver thingy.

Have fun, it's a GREAT MACHINE.

[Wizcrafts]

The table top attachment has four screw holes on the bottom right side. You should have received a package with four 6" long threaded rods, 8 nuts and washers and four plastic hand screw caps. Install a threaded rod into each screw hole in the wood. Then install a washer and nut and tighten them against the wood. Install another nut on the other end of each rod, about 2 inches up. When you are ready to use the table, slide it over the cylinder arm until the cutout reaches the inside right of the body. Slip a washer onto the ends of the rods, then push down the attachment so that the four threaded rods go through four holes in the pedestal table. Use the plastic thumbscrews to secure the table top to the pedestal.

The lube pot has two holes on opposite sides, front to rear, plus a thread guide wire. To use it add silicon thread lube to the pot (after securing it to the top of the machine with an enclosed heavy bolt). With the lid lifted, insert your thread into the right side hole in the lid, then down, through the hole in the pseudopod, then up through the left lid hole and close the lid. Feed the thread through the wire loop, on to the top tension disks.

Lube will spill out the top if the machine shakes, so leave a couple of paper towels on the machine's floor plate, behind the speed pedal.

Edited February 1, 2012 by Wizcrafts

[Tree Reaper]

You put thread lube in it and run your sewing thread through it.

Ok, I had no idea about that, do all threads require the lubrication?

That picture you posted helps Wiz, I looked at the Toledo video and didn't see the lube box.

I'll be out logging today but I'll have another look at it when I get back.

Thanks all for the help.

Kevin.

[Wizcrafts]

Ok, I had no idea about that, do all threads require the lubrication?

That picture you posted helps Wiz, I looked at the Toledo video and didn't see the lube box.

I'll be out logging today but I'll have another look at it when I get back.

Thanks all for the help.

Kevin.

Apparently, the lube pots were out of stock for a long time, so the machines on the website were photographed without them. I don't know if they will be regularly available or not, or if new ones will be made of cast iron, or plastic. These pots were originally part of the full-Monty accessory packages.

You probably don't need one, unless you sew through dry, dense leather, or sew veg-tan, bridle, or Latigo leather at speeds of 10 per inch or faster. Silicon lube cools the needle and makes it easier to form the knots inside the leather. Leather sewers are beginning to realize the benefits of using pre-lubricated thread, which negates the need for lube pots.

[catskin]

You MIGHT have to make a small notch on the bottom of the table to go around the thumb screw that holds a cover on the lower front of the machine. I had to, but maybe the person doing the router work just sneezed when they were doing mine. It would not go on otherwise.

[Tree Reaper]

Wiz;

The thread that Bob sent is pre lubed.

Catskin;

Are you using the flatbed table and if so, for what purpose?

The one that was shipped to me is missing a threaded insert, it only came with three instead of four.

If there's a use for the top I'll try and get it fixed.

Kevin.

Edited February 2, 2012 by Tree Reaper

[catskin]

Tree reaper,

Yes there is a definite advantage to having the table. While I haven't used mine much I would be looking at making one if I didn't have it. My wife used it when she sewed my elk hide vest. You will find it very handy if you sew pieces more than 4 inchs wide or soft things, it keeps them from hanging of the end and tending to pull the work so you get crooked stitch lines.

Phone Bob he will surely send you the other bolt.

Wiz;

The thread that Bob sent is pre lubed.

Catskin;

Are you using the flatbed table and if so, for what purpose?

The one that was shipped to me is missing a threaded insert, it only came with three instead of four.

If there's a use for the top I'll try and get it fixed.

Kevin.
