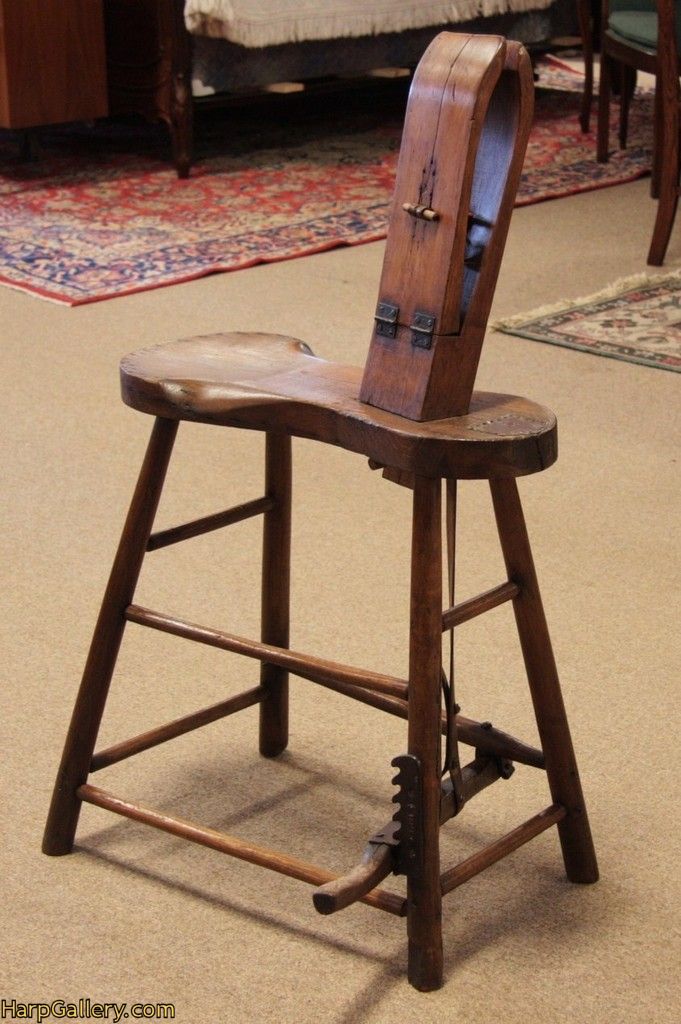

Contributing Member Jordan Posted August 2, 2008 Contributing Member Report Posted August 2, 2008 Surfing the web and found these pics I think it was at an antique sales site quite expensive if memory serves. I got some plans from Billy P. which I am going to build as soon as I can find a 14'" bandsaw I can afford. Quote
Roger Posted August 2, 2008 Report Posted August 2, 2008 i have a similar horse that my dad built a good 20 years ago. i had him make me some larger jaws like the one in the pic but not off set. you can make the jaws by laminating them. i'm gonna try and see if i can get him to make me a draw down horse. i'ed really like to have the added depth in the jaws as sewing up these bags is a bit of a challenge. this horse is all pine and when he made the new jaws, he used poplar where they meet. Quote

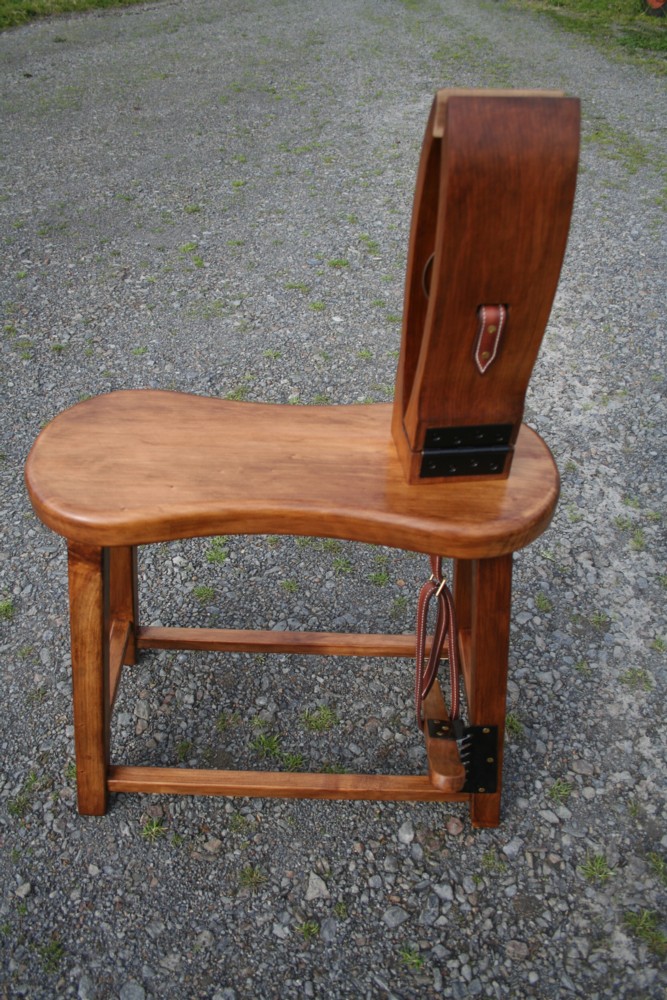

Members DJ1935 Posted August 2, 2008 Members Report Posted August 2, 2008 Hi Jordan I found some similar photos on an Antique Sale site last year. Fortunately the shop had the presence of mind to include the dimensions of the Stitching Horse as well. Armed with all this info I trotted off to a Joiner friend - who is quite used to me turning up with unusual requests but I think this one took the cake! After much muttering into his beard he turned up with the wooden bits. My Husband made the brass swivel for the foot pedal and the ratchet etc. A spring was "borrowed" from an old seat out of our 1935 Dodge and I made up the belt. The timber is New Zealand Kauri, the jaws are made from Norfolk Pine. I applied two coats of Danish oil and beeswax. The timber work cost around $600NZ - alot less than getting an antique shipped here! It has just about paid for itself already and is a great talking point in the workshop. Best wishes with your wood work DJ Quote [font="Comic Sans MS"][size="3"][color="#a0522d"]"Growing old is compulsory - growing up isnt" [/color][/size][/font]
Members Blake Posted August 2, 2008 Members Report Posted August 2, 2008 Hello Jordan I have that exact stitching horse so if you need a tracing of the jaws when you get ready to build let me know. The jaws in mine are made from "Hard Rock Maple" and the seat or bench is oak. I have seen the same pattern with the bench made of pine. Another Saddle maker duplicated mine years ago and found the wood at an architecture wood supply house rather than a conventional lumber yard or supply house. Blake Quote
Contributing Member Jordan Posted August 2, 2008 Author Contributing Member Report Posted August 2, 2008 Very cool, I will post some pics of the one I am going to make, probably be awhile though. Quote
Timbo Posted August 3, 2008 Report Posted August 3, 2008 That is too cool guys.........I like the antique and the "newer" versions. I keep looking for something to use for the metal toothed adjuster on the one I am making........without me having to drill and grind on a piece of steel to make it. Thanks for posting Jordan. Tim Quote
ArtS Posted August 3, 2008 Report Posted August 3, 2008 I have one that I bought at a flea market. It doesn't have back legs but rather made to sit on a chair in the back. When I get around to it I'm going to make some back legs for it so I don't have to mess with a chair every time. I don't use it very often so it's not on the top of my list. ArtS Quote Art Schwab "You cannot teach a man anything. You can only help him discover it within himself." – Galileo Galilei
Contributing Member Jordan Posted August 3, 2008 Author Contributing Member Report Posted August 3, 2008 That one is an interesting twist. Space saver maybe? Kinda like buying half a horse. Quote
ArtS Posted August 3, 2008 Report Posted August 3, 2008 It does take up less room (not much less) except that you have to keep a chair around that is the right height so now the chair takes up room too. I bought this and my first tools together. I saw it and when I was looking at it the guy came up and said that this goes with it. He then pulled out a tackle box full of tools, a box of leather scraps and some already cut for spur straps and some books. I got him down to $75 for all of it. There was probably $150 to $200 worth of tools in the tackle box! Thats how I got started in leather working. I had been looking but I thought I couldn't afford the tools that I saw in the catalogs. The good Lord was watching out for me. ArtS That one is an interesting twist. Space saver maybe? Kinda like buying half a horse. Quote Art Schwab "You cannot teach a man anything. You can only help him discover it within himself." – Galileo Galilei
ETW Grumpy Posted September 20, 2008 Report Posted September 20, 2008 This may be a dumb question, but why do the jaws lean so much to one side? Quote
