bland

When you say slim what do you mean? That the coverage doesn't go back much past the closure? Or, do you want them more open in the back, more narrow leg pattern. Either way you can adjust your pattern. I have made a couple pairs of shotguns based on a modified from Tandy pattern in the link from Mulesaw above. I have also made patterns from jeans. There are a lot of websites out there with how to take measurements for chaps. I only made 2 sets of chinks using 2 different printed patterns and I wasn't really happy with either pair. Have fun.

What project are you working on? 5-6 oz rawhide is pretty heavy. When it fully soaks up water it can double & sometimes almost triple in thickness depending on how you long you let it go. Search this company "TRAHIDE". I have never dealt with them but they do have an extra heavy hide that is 6-7 oz.

No resolene or other finishes until the dye has penetrated the leather and dried. Then I'll usually oil and let it even out before I apply a finish.

Don't tempt fate with faulty equipment (its come apart twice on you) you are already in a risky business even if you are riding the best equipment. Take the saddle to a reputable shop and get it checked out. They'll give you an assessment and recommend repairs or replacement. You can likely find passible factory saddles starting at $1000 and probably can get a well built custom starting at $3000 maybe closer to $4000 and up. There are more than a few good makers out there willing to make you a saddle. I know pay outs are not big at times but you'll never get a good pay out if your rigging doesn't hold. Your mind won't be right for the ride if you are wondering "is the rigging going to hold for this one? Split seconds change lives in a lot of other ways but 7.98 and 8.00 seconds pay different.

Matching a color is hard. You have a lot of things working against you. The boots are chrome tanned leather and have some patina from wear. Vegtable tanned leathers from different tanneries have different color tones even different hides from the same tannery have slight differences. I don't think there is an exact science. There will be a lot of trial and error. If I was trying to match the color of the boots I would probably start with a Fiebings Dark Chocolate or Walnut (they are a little less orange/tan) diluted down to about 1/4 strength with alcohol. If it is too light add a little more dye too dark more alcohol. If it is still too orange I would add a little black and more dilution, the black will tone down the orange. Keep track of the ratios and keep test piece of scrap where you can see the differences. When you get close add your finish of choice and see where you are at. It is going to be a science experiment. Have fun!

Sorry to keep coming back to this but after seeing you pictures my friend upped his estimate to $4500. He said it looked to be in really good shape. He used to own a saddle and tack store around Klamath Falls 20 or so years ago so he has looked a lots of saddles. Hope it helps.

Here is what a friend said when I asked him about DD Potter Saddles. "Good saddles mostly. I don’t think they were going for a long time. Out of Pendleton Oregon or right near there. Lots of great saddle makers up there in that area. I have seen a couple pairs of their taps and they are awesome but pretty heavy. Do you have one? I would guess value to be depending on shape. Not a well known name and Wades seem to be coming down so I imagine $3500. If it was a Severe saddle from that area it would be $6000. They might have used Rich Bean trees which would be a huge point of quality!"

I don't know the name, but I have a friend that worked ranches from northern California to eastern Oregon and he knows the saddles and thinks pretty highly of them.

To me it looks like Crafttools basketweave X511 and the camoflage 433 (it is an old one)

I would ride it just like it is. I'm just imagining riding it right now through the damp sagebrush gathering cows, what a thought. It's a pretty saddle with nice long pretty taps. There are a lot of working cowboys out there riding a single rigged saddle similar to that one every day. You could probably find some around Pendleton this week roping at a branding all day long with hundreds of catches. I would recommend not to alter it. I'm sure if you ride it for a while and don't like it, you could sell it for about what you paid for it or maybe a little more in the right market. There is someone out there looking for that saddle right now. Just a thought.

You absolutly could add a back rigging, but why do you want to? Is your plan to work in it daily roping big critters or are you in steep rough country? From the pictures it looks like it is aleady rigged back at 3/4 or 5/8, could be wrong the picture angle is not the best. The back of the rigging probably wraps behind the cantle and it should pull pretty flat and not flip up in the back. Cost prohibitive? What is it worth to you to have the ability to have a rear cinch? I think you could probably have it done for $300-$500. It would alter and devalue the saddle some. Just my opinion, but I would ride it like it is or pass on this saddle and find one you like for the job you are going to do on it.

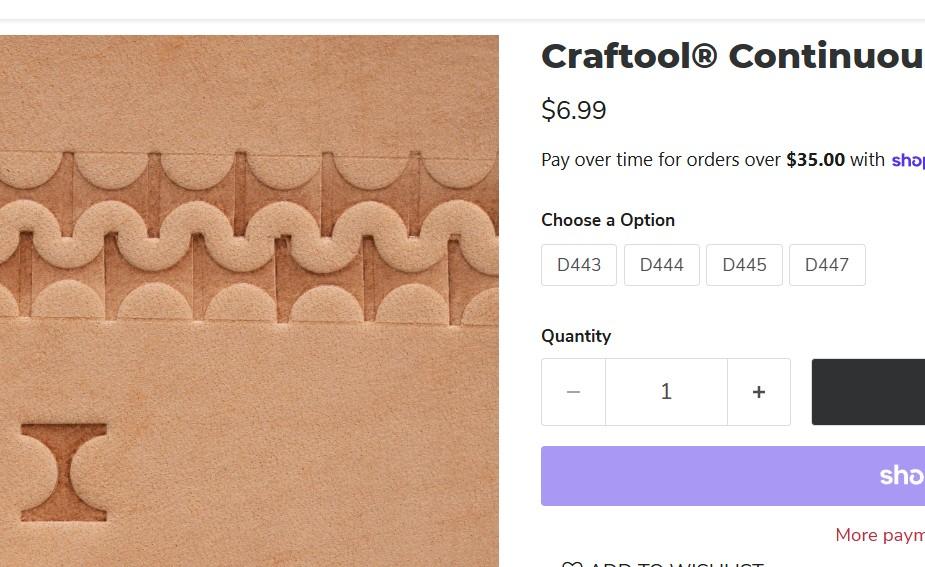

Or a less expensive option at Tandy. https://tandyleather.com/products/craftool-hourglass-border-stamp?_pos=1&_sid=6e3e56c2a&_ss=r

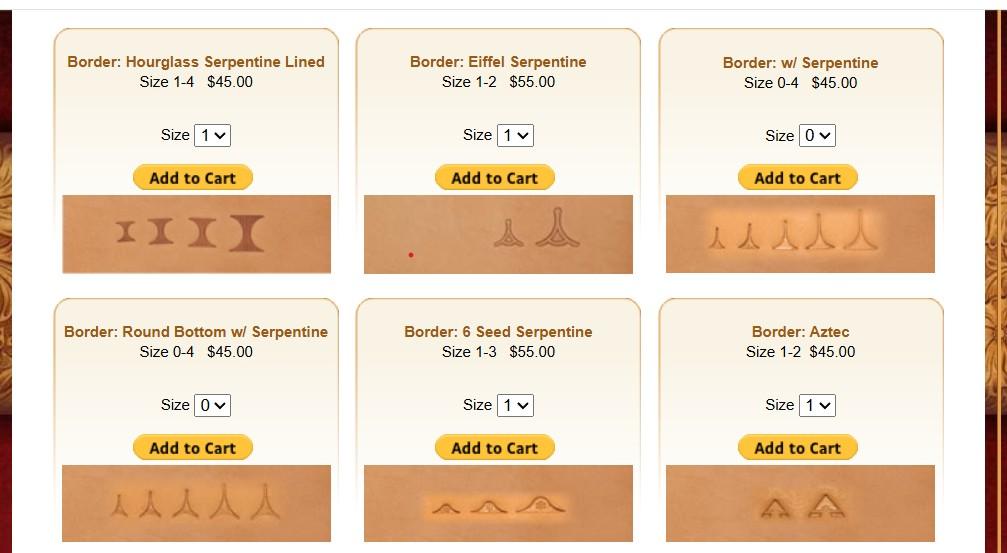

I'm sure there are several companies that have different sizes but here are some styles from Barry King.

Is it a western saddle? I have never dyed a tooled saddle. I think it would be difficult to get a consistent color after forming and shaping all the parts. Only an opinion but if I wanted to build a dark saddle I would use drum dyed skirting leather. Many companies offer dyed leathers.

Didn't realize how old this post was. Masters project should already be done by now.

It is the foundation of the seat in western saddles. It is put in several layers and ground/skived down on each one shaping and smoothing. Then you put the seat in.

If it is a western style, you do not want to wet mold it very tight. Al Stohlman, Will Gohrmley , and many others have patterns out there. There are several YouTube videos on the subject. There are several threads on this forum to assist you. Search the posts on the forum. Most will have a hammer thong to hold the revolver in the holster in place.

Yes, the liner is assembled and then dropped in as a unit. I think that is the way to go.

Leather Machine Co, Toledo Industrial, other advertisers on this site, an Amazon search or trip to a local industrial sewing shop will give you many sizes and colors to choose from. You can get a 1 oz or larger spool/cone. ~ $7-10 for the 1 oz. Below is from just a sample of an Amazon search. Toledo industrial has an even larger selection of colors. Even if you are sewing by hand sewing machine thread works well and will match the thread on the purse. Colors will generally sew in and look a little lighter than when it is on the spool/cone. When the liner was dropped into this purse it was sewn in on this top seam. So, to me that is the way to go. To me it is easier to sew if you can see both sides to saddle stitch or lock stitch with a Speedy Stitcher or similar. You should be able to match up and use the same stitching holes when putting it back together.

If it was me, I would remove the liner or at least pick out a few stitches on each end. Then you can do your repairs stitching and riveting the strap attachments and it won't show on the inside. Then restitching the liner. I would pick out the top seam on the liner where both pieces are leather. That is the easiest way to get it back in looking good. Good luck!

Thanks for the photos. It looks like it has been in some serious wrecks. Personally I would not put all new leather on that saddle unless you are just wanting the experience. I would inspect and see what you are up against. From the pictures it looks pretty rough. Is the tree damaged? I know it has some sentimental value so If everything checks out and seems okay I would clean, oil, repair or replace the small items, damaged areas and missing items (stirrup hobbles for one). If you are ambitious you might put a new seat in it. Still you can get a saddle like that in good condition for $300-$600.

@Dwight I don't think you would like a saddle bag 18 x 18 x 5. They would get under you leg or hang way back (about 6 inches on a square skirt saddle) interfering with your horses movement. They would also hang way down on the side getting in the way. The old cavalry saddle bags are pretty big and I think the measurements there are in the range of 13 x 10 x 4. You could include a cantle bag on top and still tie your jacket/blanket on top. To your original question about dimensions. There is some "it depends" in the calculations. All saddles are a little different. Do you have a saddle handy? If not I can give you measurements from mine. The distance from the cantle to the edge of the rear skirts on my 4 saddles average 5 1/2 inches. The bag opening/lid should be just below where the cantle ties in at the seat ear where the conchos and saddle strings are (if it has them there). Rear saddle strings are about 12-14 inches apart again not all the same. The distance from the center of the cantle to the level of the where the bag starts is about 8 inches so overall in the 16 inch range. As far as the arc on the cantle it also depends on the saddle tree maker some are a little flatter on the back. I would just take some paper/posterboard for a pattern and cut the general shape then you can scribe a line on your pattern with your compas. I don't punch my tie holes until I can see where the rear saddle strings hit on the bag. Take that for what it is worth.

What type of saddle are you restoring? Western? English? What is the purpose of restoration? How old? I don't know much about English saddles but most of the western saddles I have worked are not worth the expense of replacing all the leather. The tree would have to be in pristine condition. There are areas of the hide that are better for certain parts of the saddle. Do you have a picture of the saddle you are working with?

Welcome to the forum!

Here are the pictures. Can you pull the tabs to the outside?
