CowboyBob

A Pfaff 563 is a light duty tailor machine. Bottom feed only. Bob

Yes,there is many different lengths of needles that come in a #22,but you probably got 135x17 which SOME 1245's take but it sounds like you need the 190R for your machine. Bob

Doug, This screw is a 9/64 40 tpi Bob

Usually the race wears,it's cast iron.The hook is chrome steel & doesn't hardly wear,the tip can get damaged though. Bob

Doug, Yes,this is a common problem,I think people forget to oil the hook & race as often as they should & the race is cast iron & it will wear causing it to be loose. Bob

I think the sideways stitching he's talking about is zig-zag. Many home machines have this option & so do some Industrials,but you need a walking foot Industrial capable of doing some fine work on leather & you don't want to leave marks as the walking foot zig-zag feet has teeth on the bottom & they are also very wide.A standard straight stitch walking foot like our Chandler 406RB will do a great job sewing your leather & there are many different feet available too. Bob

We sell the same machine Cowboy Model#227 & I would never tell someone they would sew 1/2" thick w/277,more like 3/8" with #138. NOW years ago I sold a Singer 153 same machine w/o reverse & he claimed that he ran 277 on it. I sell these to people for sewing purses,chaps,belts & lightweight material where they don't need a large thread. Bob

I've never seen dies for sale as I suppose they were always made on screw machines,but yes we can order the tap kit of 20 most common taps & they can be bought individual also. Bob

Darren, Here's some # for you,5/16-18,5/16-24,1/4-24,9/64-40,1/8-40,3/32-56,5/32-32,11/64-40,15/64-28,3/16-28,3/16-32,3/32-48,1/8-40,9/64-36 There is a kit with 20 of the most common ones available for just under $200.00 us Bob

Greg, I've never heard of that model 122 I always thought the 47K was the heaviest ZZ machine they made of course back in the day any manufacture of certain products would go to Singer & their engineers would draw up & they would make a speclized machine for sewing anything that needed sewing. I wished I kept track of them more but yrs ago we had a customer with some I think 5 class real long double needle machines w/a puller.If you want to hear something that sounded neat those machine had the nicest rattle,klang to them I've ever heard. Oh,I forgot to mention this before, I think it was around 1983-84 I stopped @ your store & bought a couple of 6 class from your Dad,they were upstairs.Don't see many of them around anymore either. Bob

What are you talking about?? Bob

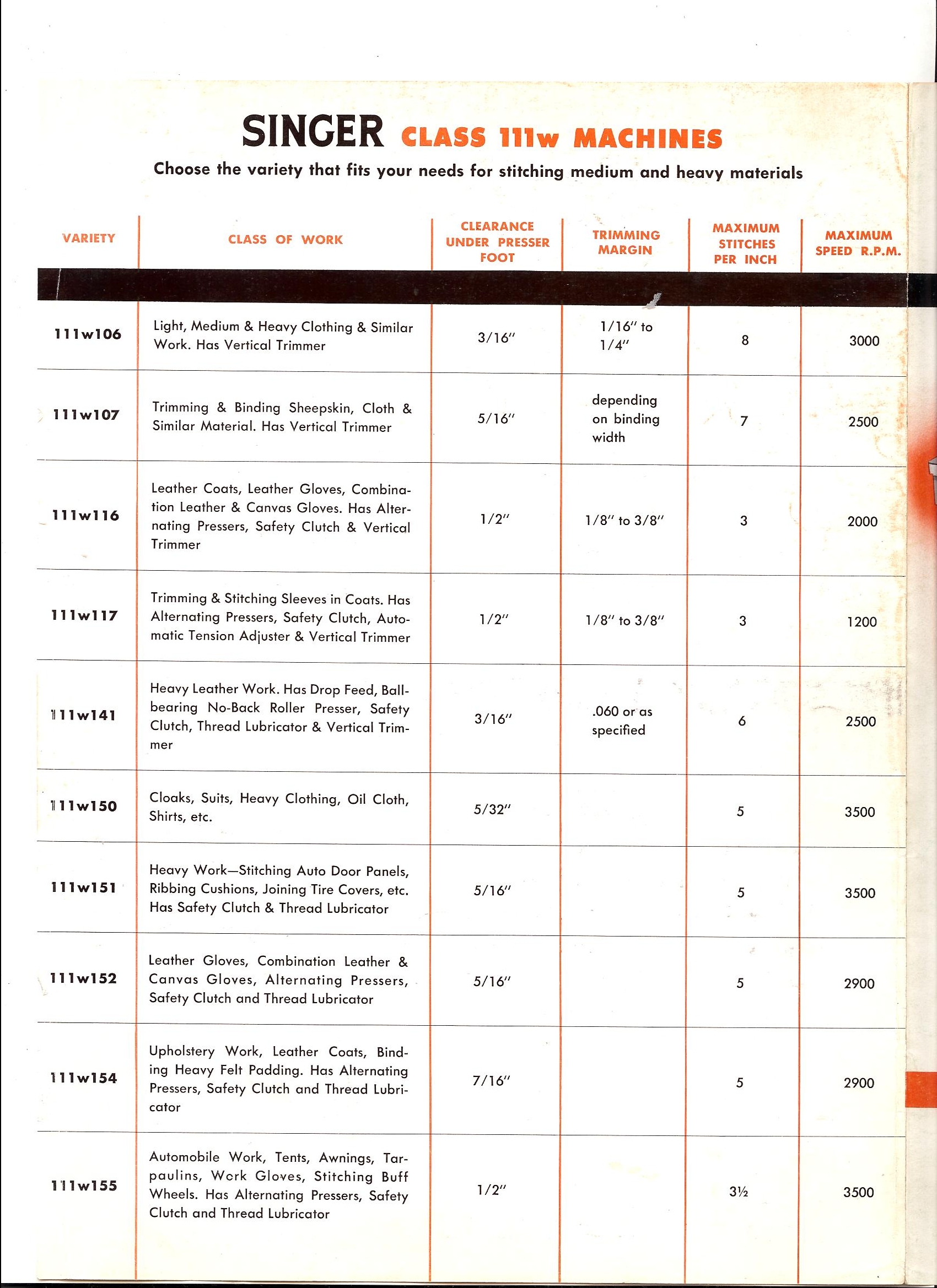

I looked it up & that's all your going to get.You can see the chart what other models get for stitch length. Bob

Just for kicks I want to let you guys see a 98-3,which is similar to a 97-10 in many ways just smaller & alot easier to load.It was made for sewing tires when you recap them.Of course this was in 1915.It does have reverse though. Bob

Looks good, If you open the upper plate & look to the left of the timing belt,you might have to turn the machine around so you can see the little screw,there SHOULD be 2 in there,take the 1st one marked BB on the diagram & turn CC in as far as it'll go,reinstall lock screw BB & it will be as long as it can be.We can get a teflon foot for it that will reduce the drag of the steel foot or you could even just glue some teflon on the bottom of the feet to help. Bob

There is some models of the 132K made with roller feet.It could be made to fit by taking the outside flat bar off & then you might need to adjust the back pressure foot bar.This is a big machine for sewing thin material.The smallest needle made is # 18 so that would limit them to a #69 thread & that's a round point,I'm alsmost certain that leather points aren't made any smaller then a #22. Bob

Greg, I hope you can find some needles for the 97's because I can't. Bob

You know that's a great idea that everyone should do..have a machine for each color. Sounds like you still need another machine for the brown?? Bob

Yes,I forgot to mention he's correct the Cowboy has a tension release too.It's right underneath the first tension umit & is activated when you pickup the foot,it's a black lever. When you take off the end cover plate to oil the parts inside you need to make sure you line the pin up when you put in back on. Bob

Steve, Sounds like a good deal.Years ago when we sold Adlers we had a big problem with the Amish,when they sewed the heavy work tugs the needle would pull out.So what they did was grind a flat spot on the shank to hold it in.That screw just is to small to get it tight enough to hold.I've heard the newer machines have 2-screws on them,does yours? That's about the only fault on them but we always felt bad when we told people to put a flat spot on the needle to hold it in(Were ta;lking a $5,000.00 machine).We used to sell alot of those needle set screws too as they stripped out real easy.I could never understand why they couldn't put a larger screw on it like the 441's. We also would drill a 3/8" in the plastic @ the top of the takeup lever so you can see when the takeup lever is all the way up. Bob

What is the price on the timing belts? Bob

No,the top feed one is the best,but there is a few different manufactures of them. Does it look like a quality built machine?That is a real low price. Bob

To get good at running one you need to get some scrap & play with it @ turn the knob on top & the ones behind the foot (they change the angles) But there is no set adjustment like turn the knob x# of times to take 4oz to 1 oz as different leather will cut alittle different. I'm sure after you run it a while you'll know what to do alot easier. Bob

Turn the knob on the top down for more. Bob

The bobbin goes in so it turns counterclockwise. Oil anything w/hole & open the cover over the needlebar & oil all the pivoting joints in there too. Also oil the outer part of the bobbincase everytime you go to use the machine & or everytime you replace the bobbin. Open the top cover just to the left of the handwheel & you'll be able to see the raise part w/o oil hole in it . On these oiling diagrams,the oil spots are marked with arrows. Bob

Like Greg says it depends on the # there's a 211G157 needle feed w/reverse,but yes,in the walking foot machines I don't know of anything under 166. Bob
